Linear actuator position indicator board

$50.00

Expansion board to indicate actuator position
A simple-to-use expansion board for our MC-03, and MC-02 (contact us to verify), linear actuator control systems.

Paired with the MC-02/MC-03 control system you can have up to 16 indicator LEDs light up based on the current actuator position. This is nicely paired with push buttons that have LED indicators built-in, or LEDs installed in a panel.

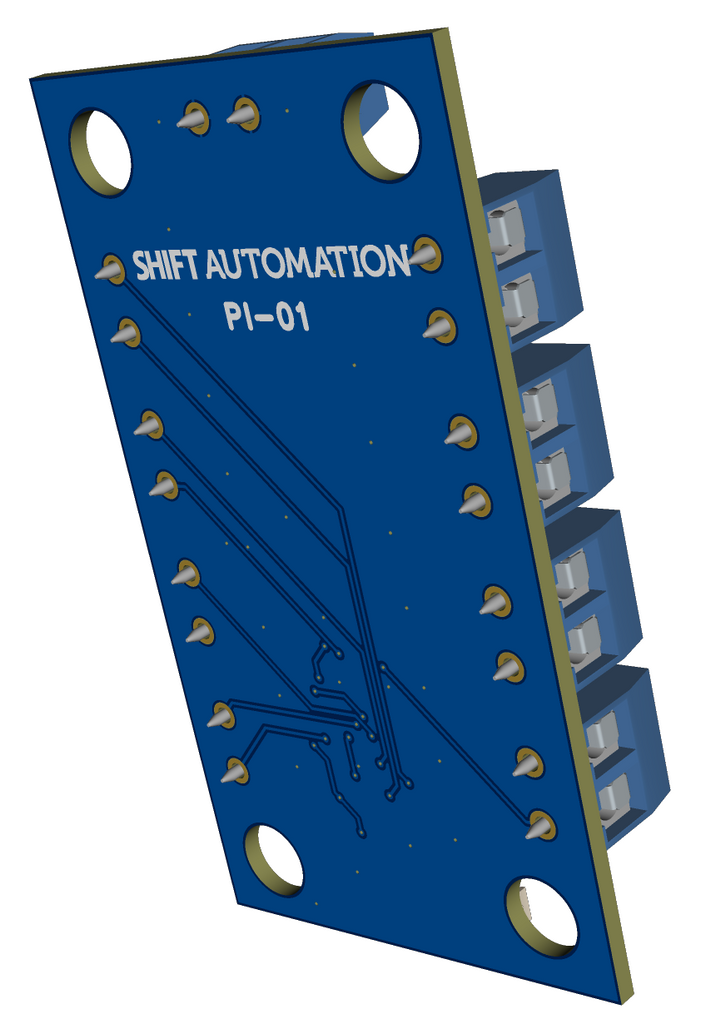

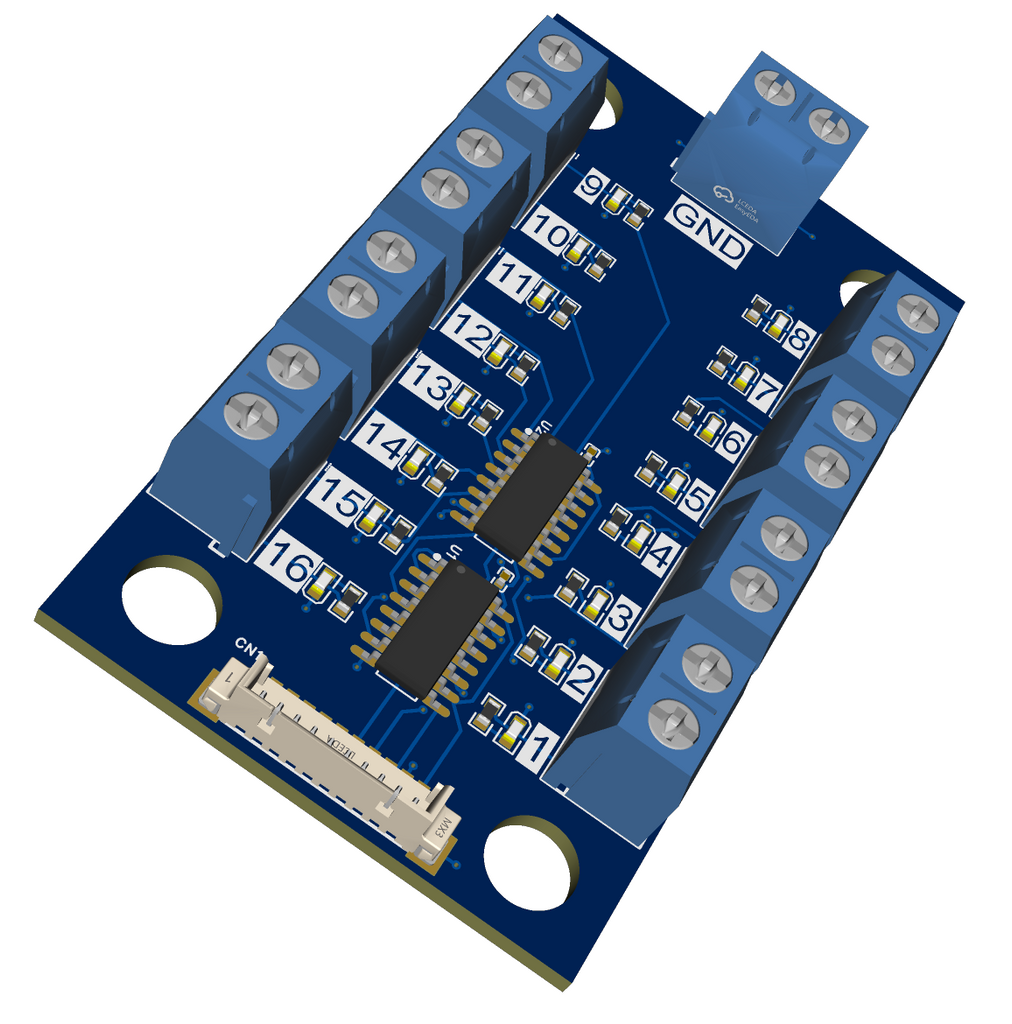

Please note that the images displayed are rendered 3D models as the first batch is in production and will be ready to ship soon.

Key Features

Simple wiring: Connect your indicator LED ground to the board and the LED +V to the position # you want it to light up for. The MC-02/MC-03 and the PI-01 will light the LED when the saved position is reached.
Onboard indicator LEDs llght up as well as your indicator LED, allowing you to quickly see the position as well as troubleshooting your indicator LEDs if needed.
5V power to your LEDs is provided through the position indicator board.

Note: Your indicator LEDs must have an appropriate resistor built in or wired in series so that the current for one of the LEDs is <20mA at 5V. All of the push buttons with indicator LED integrated that we've come across have a resistor integrated, but best to measure and test. Let us know if you need any tips on how to do this.
